This item is available for PRE-ORDER
Programmable Parameters and Functions
Monitoring and Diagnostics
- Revolutionary simple Rx calibration
- Real-time monitoring:
- Battery voltage
- ESC and motor temperatures
- Motor diagnostics and more
- Revolutionary battery current and discharge monitoring
- Pre-race diagnostics:
- Motor temperature
- Sensor cable
- Bad motor
- Battery
- BEC voltage and more
Programming and Customization
- Easy programming:
- Throttle
- Brake
- Boost and turbo timing
- Hall angle and many other functions
- Adjustable maintenance reminder for easy checking
Data Analysis
- Race data logging
- Temperature and other curves
- Histograms and more
Convenience
- No programming interface required
Key Features

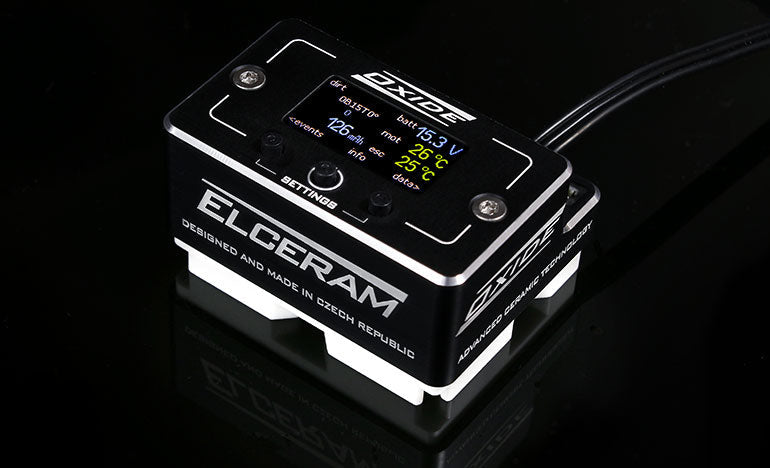

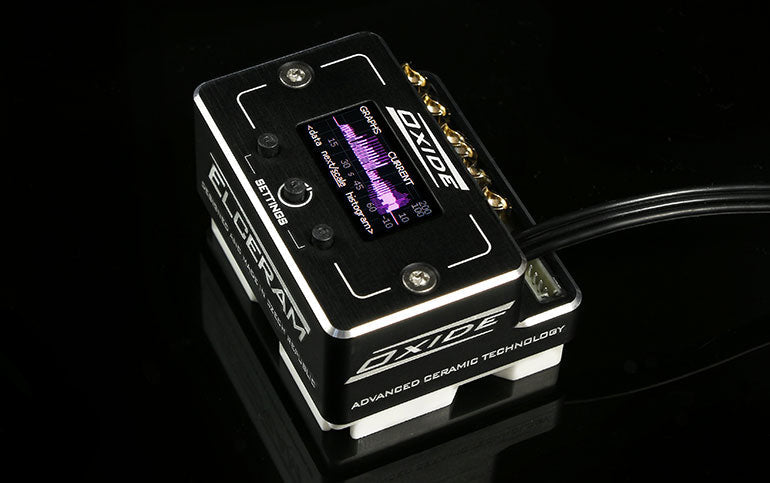

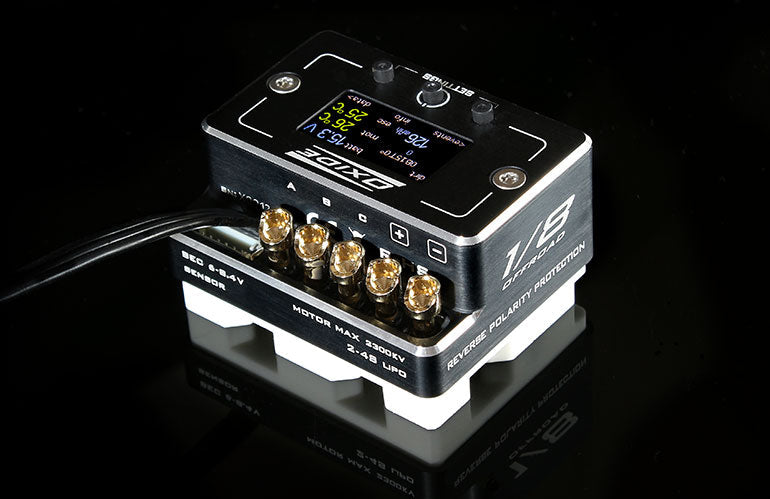

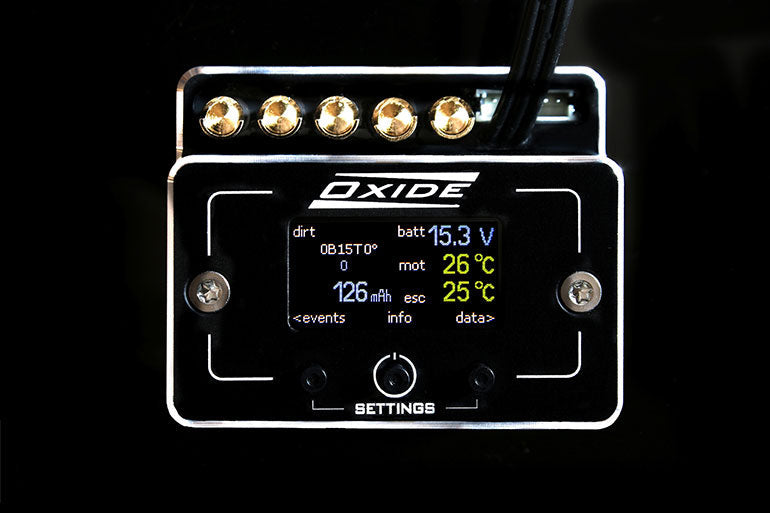

TFT LCD Colour Display
Matte finish, 160x80 pixels resolution, allowing for easy parameter setting and data checking directly on the ESC.
Easy Check and Set
Quick overview of important data and events, with fast setting changes and instant feedback.
High Power Electronics
Advanced Cooling Technology for professional RC racing, with Aluminium Oxide heatsink for excellent thermal conductivity.
Protection Features
- Reverse polarity protection
- Intelligent algorithms for ESC protection
Compact Design
Dimensions suitable for 1/8 offroad RC cars, with 70% of weight on the underside for added stability.
Easy Installation
Quick installation using double-sided tape or two screws M2.5, with a removable and rotatable cover.
Specification
General
- Type: Brushless, Sensored
- Scale: 1/8th Offroad
- Waterproof: Yes
- Polarity protection: Yes
Relevant Parameters
- Cont./Peak Current: 200A / 1500A
- Input Voltage: 2S – 4S LiPo
- BEC Output adjustable voltage: 6.0 – 8.4V
- BEC current Cont. / Peak: 6A/15A
Size and Weight
- Width: 40 mm
- Length: 50 mm
- Height: 28 mm
- Weight: 112 g without wires / wires AWG11 – 200 mm
Applications
- Sensored Brushless DC Motors up to 2300 kV
- Vehicles: 1/8 Buggy, Truggy and other cars
- Zero Timing (Blinky Mode) supported
- External capacitors needed (included in package)
Available for preorder deposit. Final price TBA, difference will be invoiced.
