R1 WURKS DIGITAL 3 SPEED CONTROLLER (REV2 040007)

  • Sale
  • $349.00
  • Regular price $359.00


BRAND: R1 WURKS
SKU: R1-040007

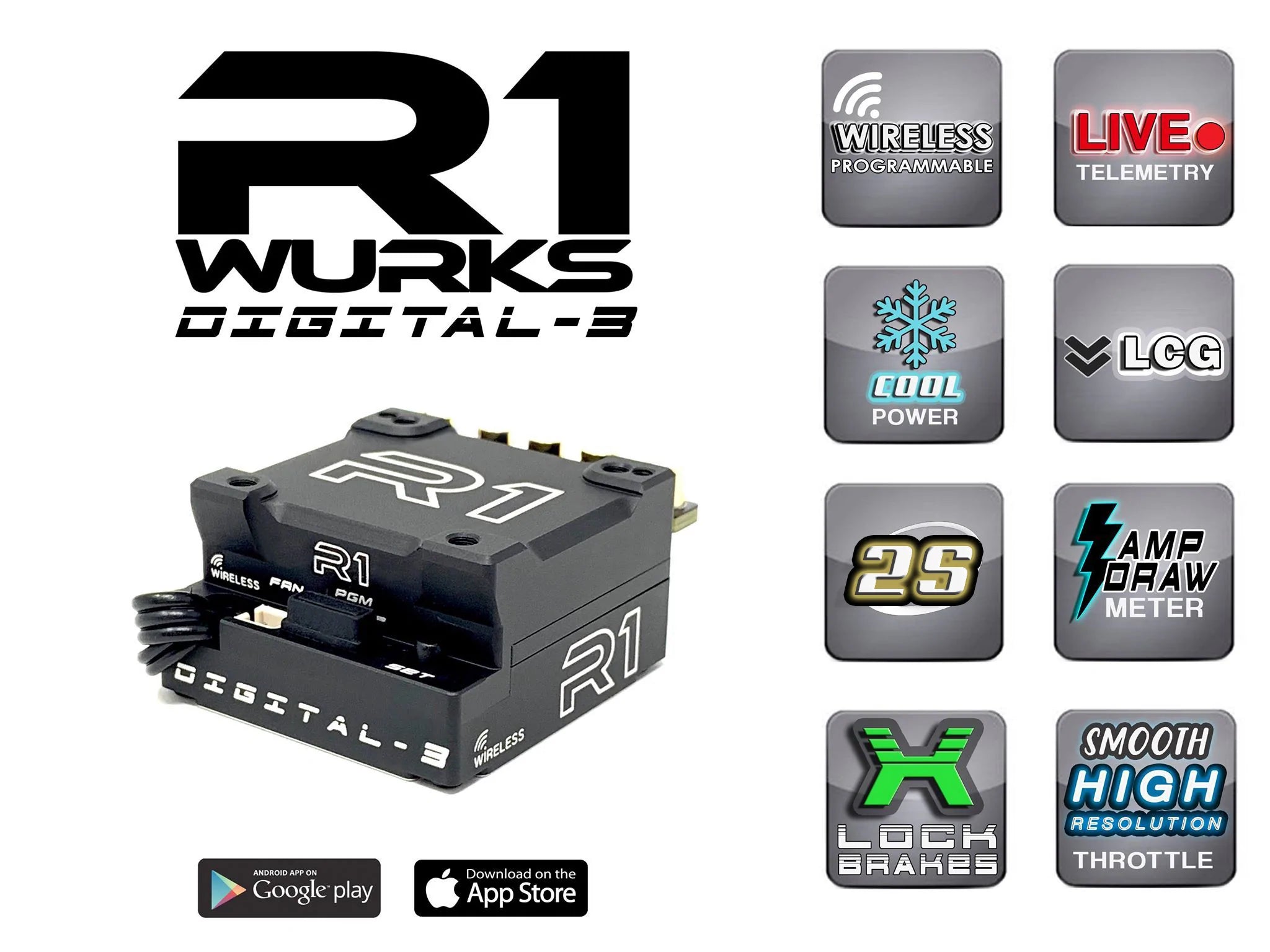

R1 WURKS DIGITAL 3 SPEED CONTROLLER (Rev2)

Rev2 is an updated version of the Digital 3 ESC. This new update includes a new high current Mosfet and is perfect for STOCK or MOD racing.

Note for Drag Racing: This speed controller has been evaluated by team drivers for use in 1/10 onroad and road course racing and 1/10 off-road racing. Due to the high stress and power demands of drag racing and speed runs, this ESC performance and durability cannot be guaranteed under these edge use cases where the ESC is known to operate passed the intended current rating.

ROAR APPROVED!

FEATURES

  • Full aluminium case and heat sink design
  • Full compatibility with modified and stock racing
  • Superlative FET and low-resistance power PCB design
  • 30mm fan for maximum cooling
  • Software/hardware upgrades increase speed by reducing motor temperature by modifying the commutation algorithm
  • The Built-in booster BEC has a Maximum voltage of 6V and 7.4V, making it easy to operate a variety of servo without the need for a separate receiver power supply
  • New turbo / boost timing setting and delay time setting
  • New brake response mode and PWM / brake frequency allows various race and control types
  • Data port for connecting to WiFi module
  • WiFi module allows program parameter settings and firmware upgrades
  • ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log

Programmable Items

  • Model Type
  • Select Battery
  • Cut Off Voltage
  • Power Curve
  • Boost Max+TB
  • Boost-TH. Limit
  • Boost Min-rpm
  • Boost Max-rpm
  • Turbo Delay
  • Turbo + Slope
  • Turbo - Slope
  • Acceleration
  • Start Power
  • Smooth Start Rate
  • Smooth Start Range
  • Reverse Function
  • Reverse Delay
  • M- Reverse Amount
  • Neutral Width
  • Motor Direction
  • Brake Response
  • FAN Control
  • Drag Brake
  • Min Brake Amount
  • Mid Brake Amount
  • Mid Brake Location
  • Max Brake Amount
  • Soft Brake
  • Brake Freq
  • Motor Freq
  • Drag Freq
  • Cut Off Temp
  • Cut Off M-Temp
  • B.E.C Voltage
  • Motor Pole Num
  • Gear Ratio
  • Tire Diameter
  • Motor-Wiring
  • Units
  • Download
  • Factory Setting
  • Current Voltage
  • Current Temp
  • Max Temperature
  • Motor Temp
  • Motor Max Temp
  • Max Current
  • Maximum Speed
  • Maximum RPM
  • Error History
Specification
  • Motor Type - Sensored / 4Pole Sensored
  • Motor Limit - >3.5T
  • Operating voltage - 3.7-7.4V
  • Forward / Brake / Reverse - yes
  • Full aluminum case / heatsink - yes
  • Typ. Voltage Drop @20A per phase - 0.0048V
  • Rated Current per phase - 2549A
  • Plugged 30x30x10mm Fan - yes
  • BEC Output - 6V/7.4V Bulit-in DC Booster, Continuous Current of 3A
  • Multi-Protection-System - yes
  • “Boost 0” Mode - yes
  • Multi-frequency system - yes
  • Power Wires - 12Awg
  • USB Software Updateability - yes
  • Case Size(with out fan) - 32.9 x 34.6 x 21mm
  • Weight(with out cable) - 50g
