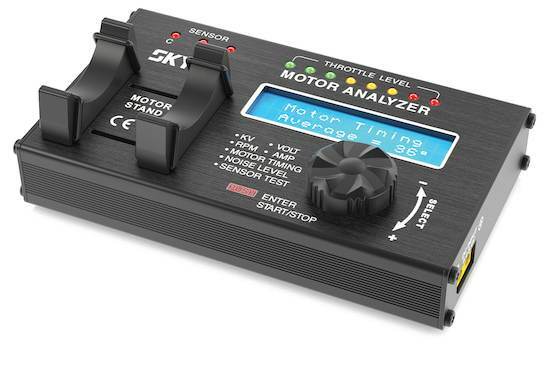

SKYRC Motor Analyzer BMA-01 is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.
Specification
- KV Value Accuracy: +/- 3%
- Motor Timing Accuracy: +/- 4%
- Motor Timing Range:0-70°
- Noise Level Measurement Range : 60dB - 120dB
- Dimension: 136.5mm x 80.6mm x 24.5mm
- Net Weight: 282gram (Without cable)
- Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
- Current Drawn Less Than 30A at 8.4V Without Loading
- Input Voltage 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
- LCD Display Screen: Blue Backlight Background, White Text,16 Characters X 2 Lines
Functions
- KV Measurement
- RPM Measurement
- Voltage Measurement
- Ampere Measurement
- Motor Timing Checking
- Noise Level
- Hall Effect Sensor Test
(SK-500020-01)
