This item is available for PRE-ORDER

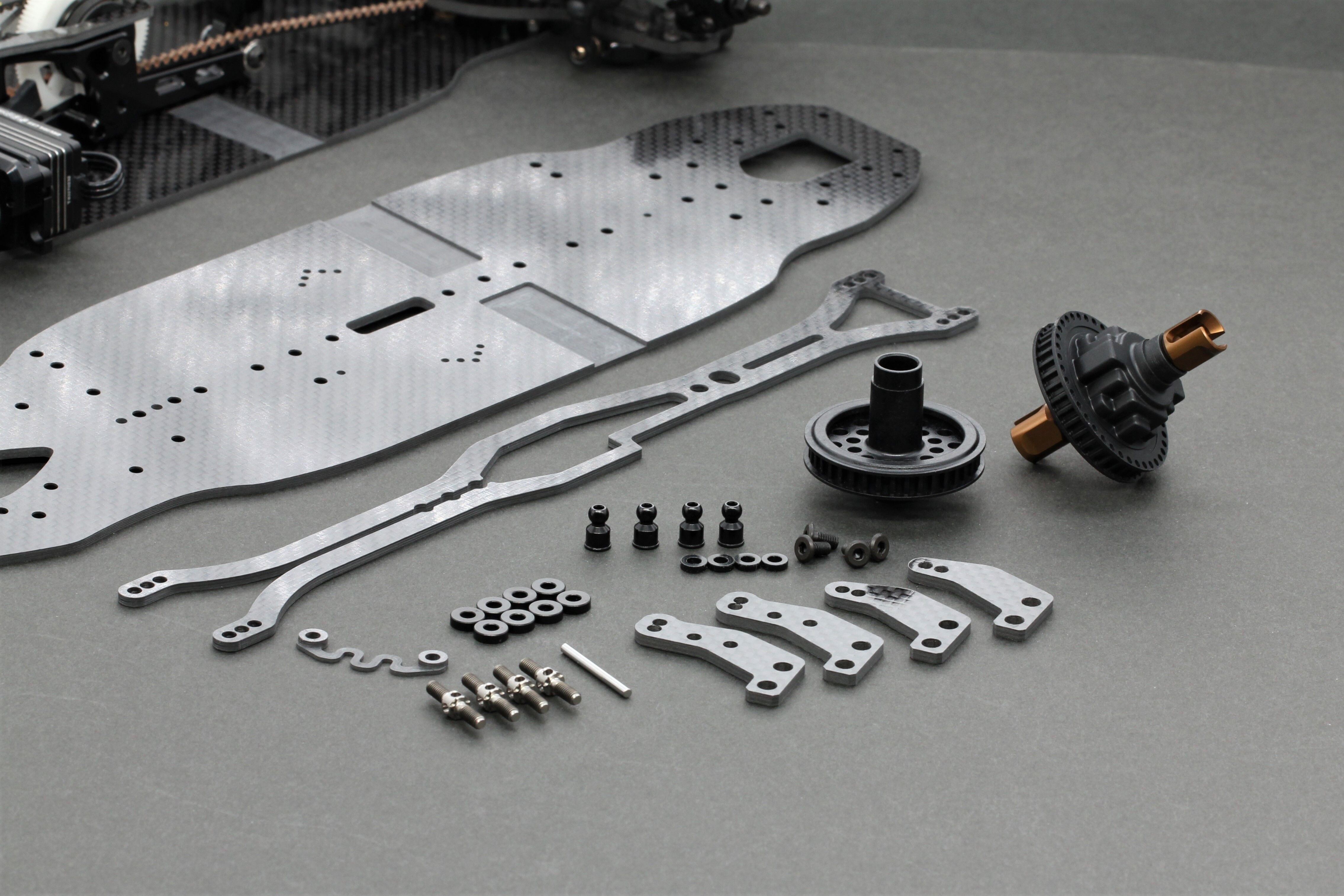

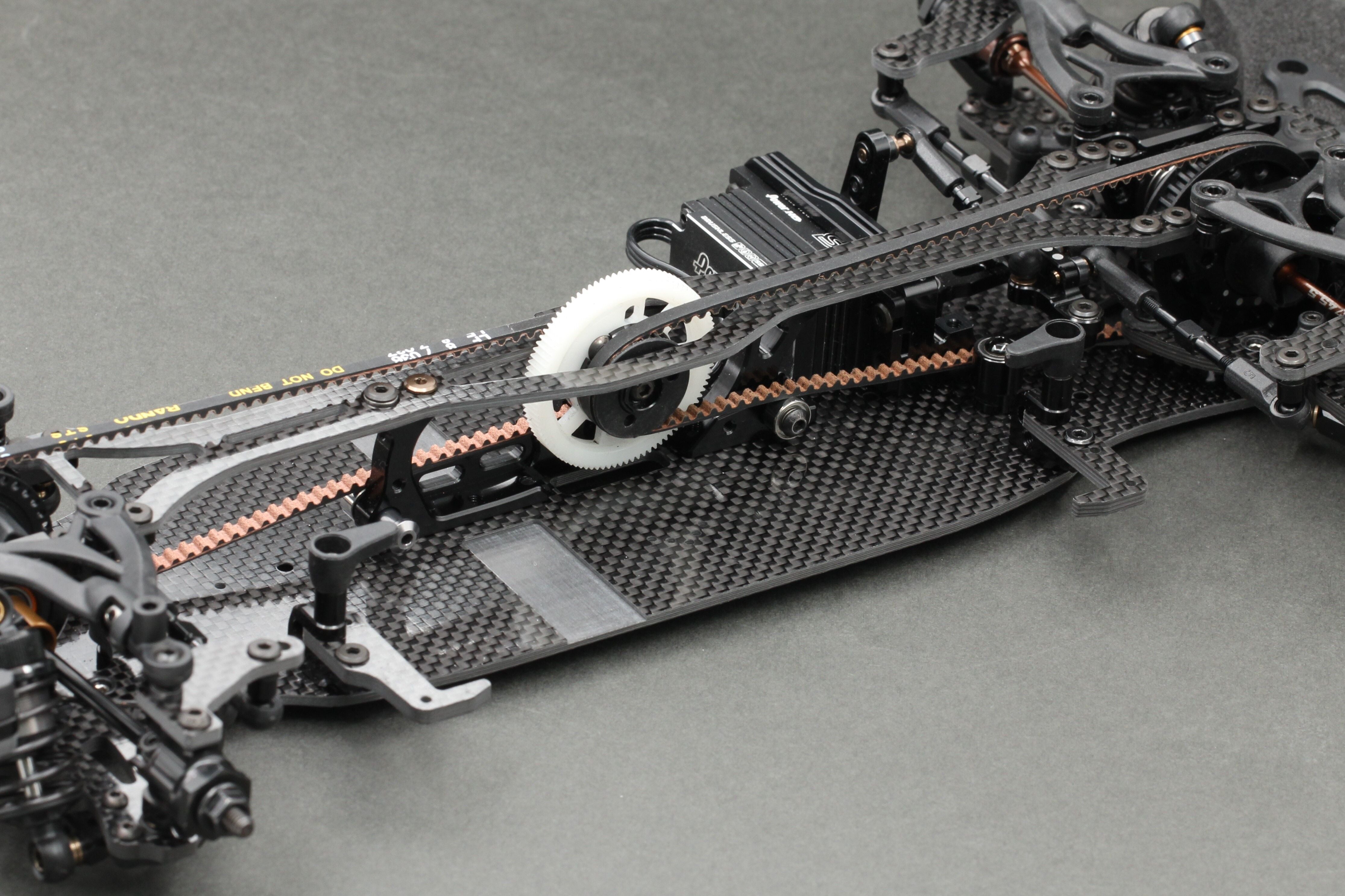

New parts for Destiny RX-10SR 3.0R Touring Car.
- New high grade graphite main chassis.
- New Lightweight front spool set.
- New Lightweight rear gear differential set.
- New titanium camber screw M3x18mm.
- 3x7x2mm aluminum lower arm spacer set.
- New graphite front and rear steering plate set.
- New single piece upper deck.
- New wave shape graphite front brace.

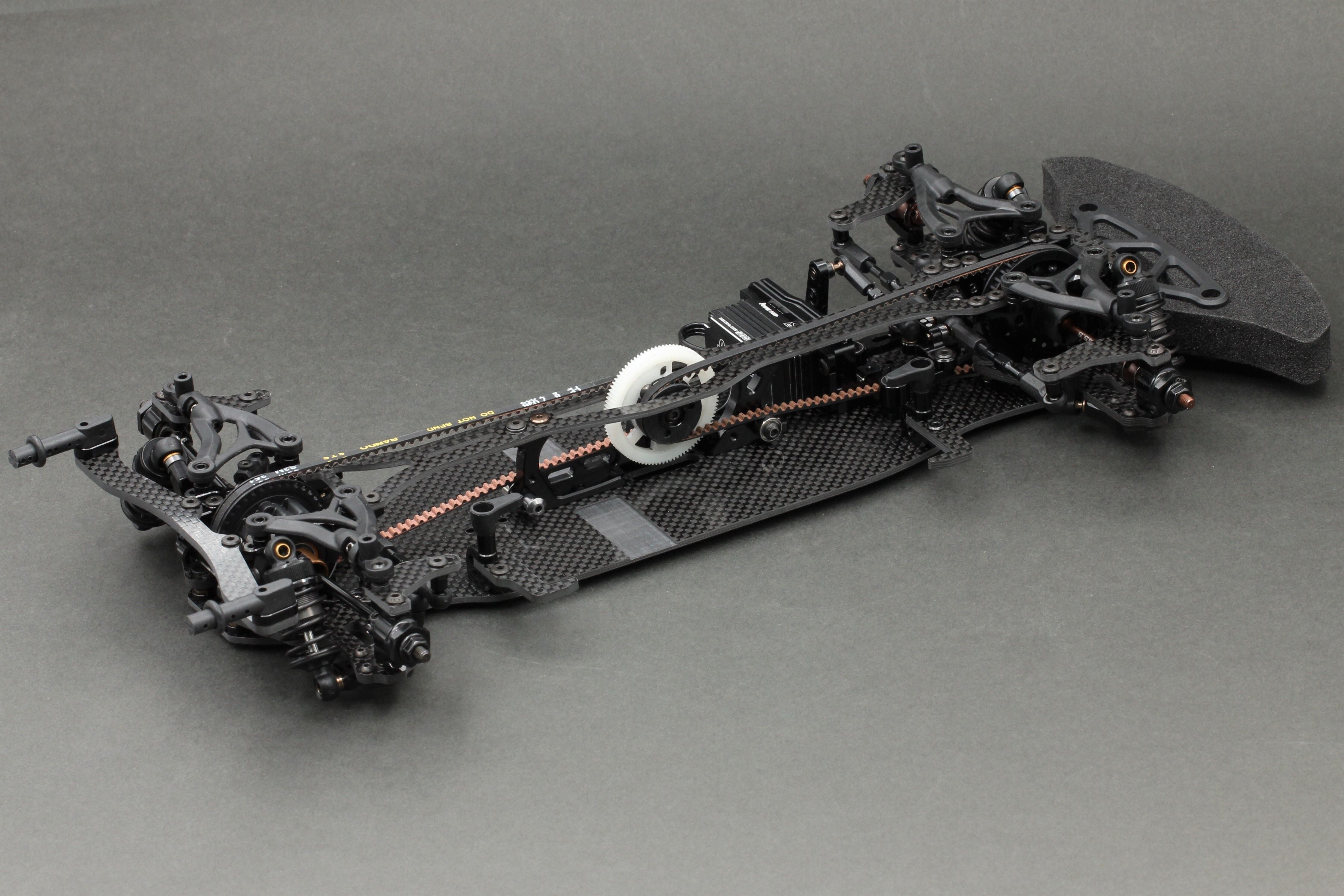

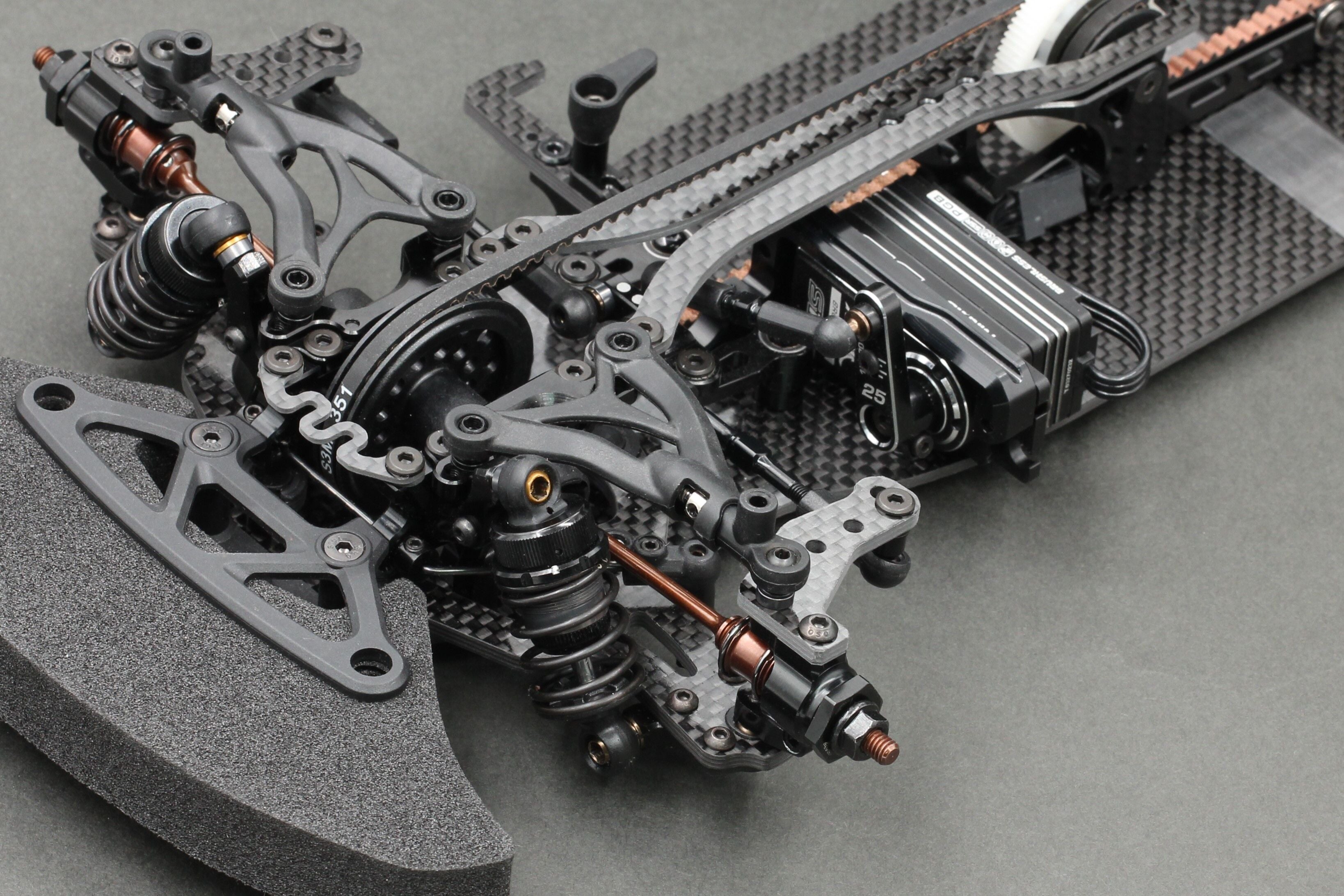

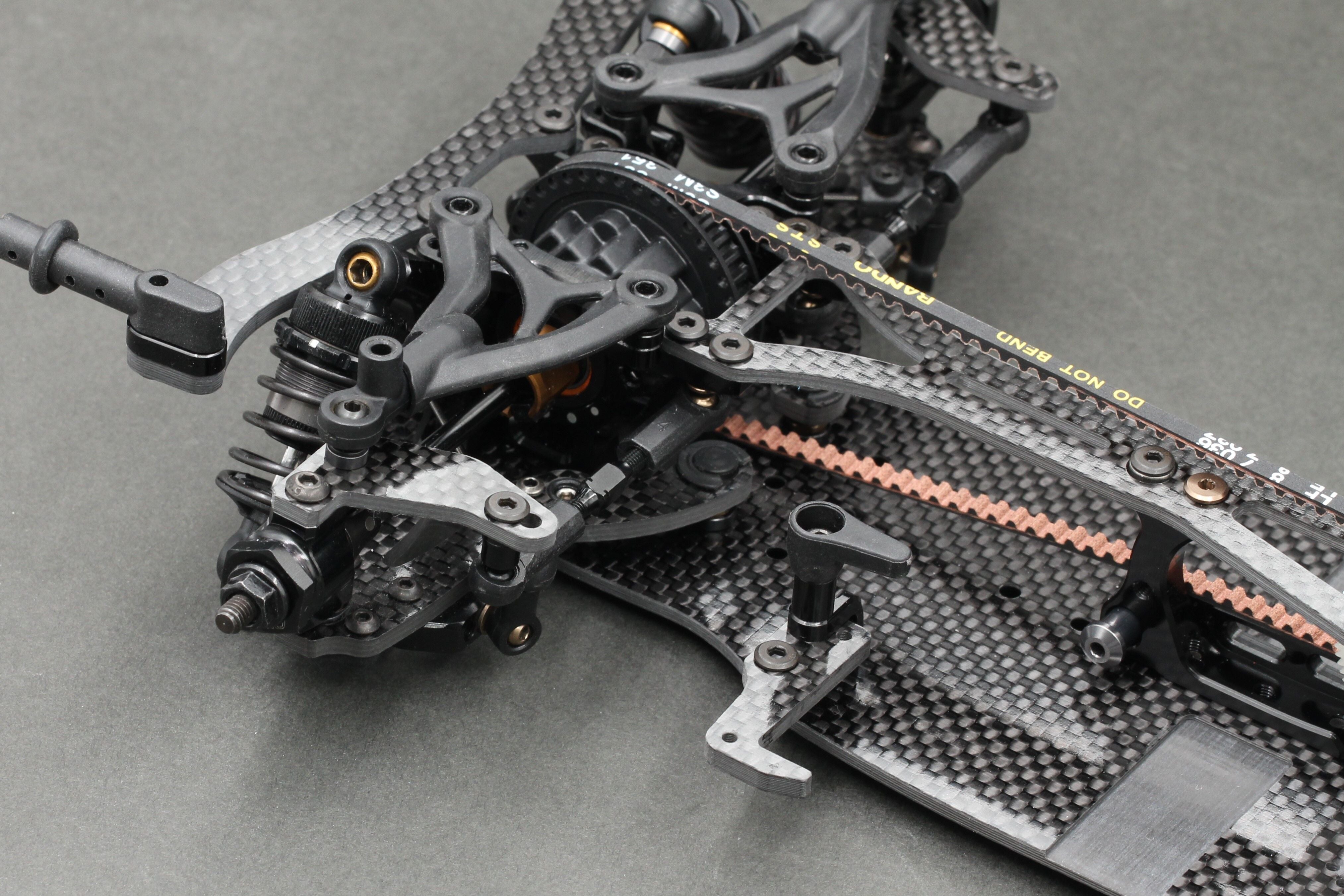

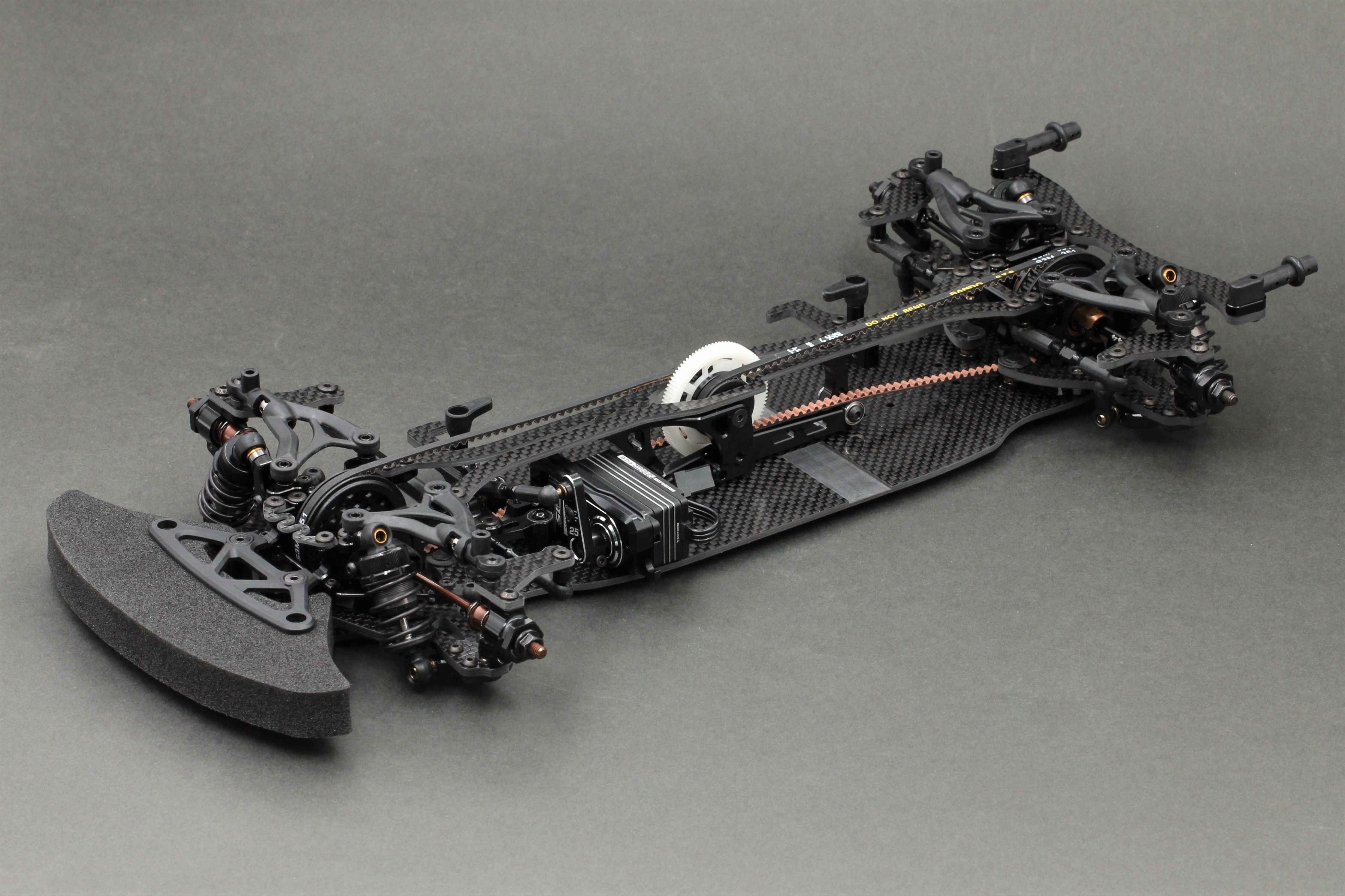

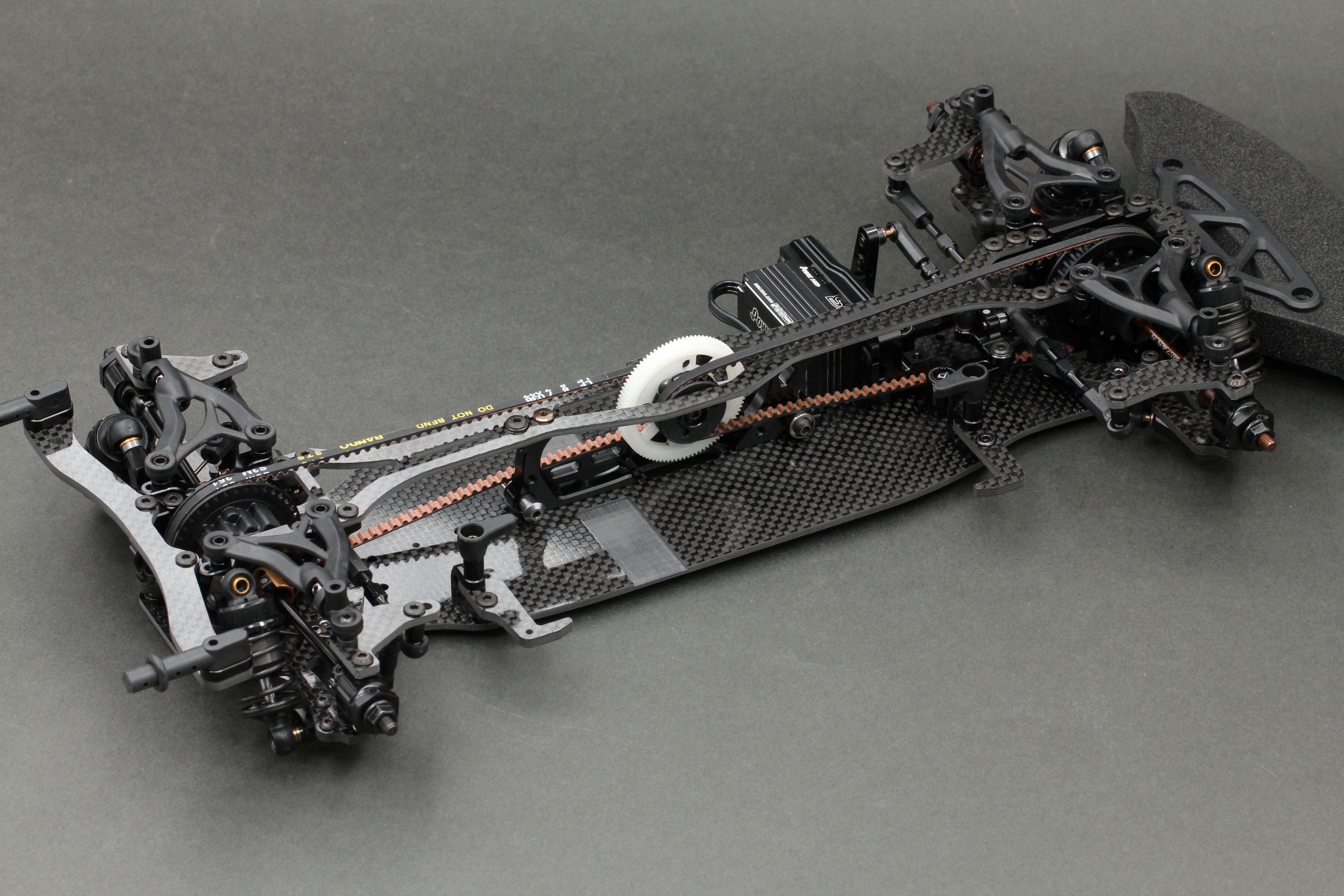

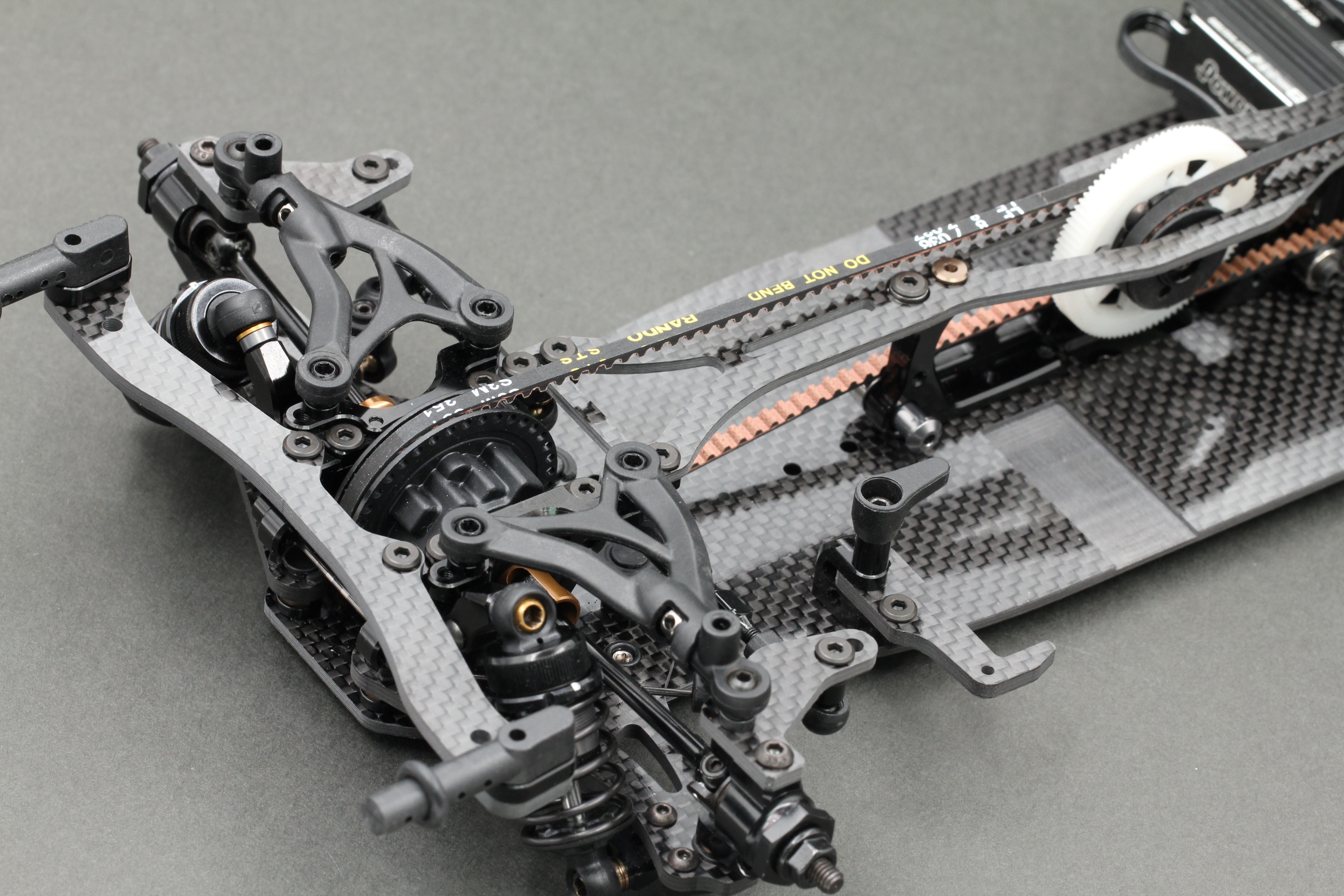

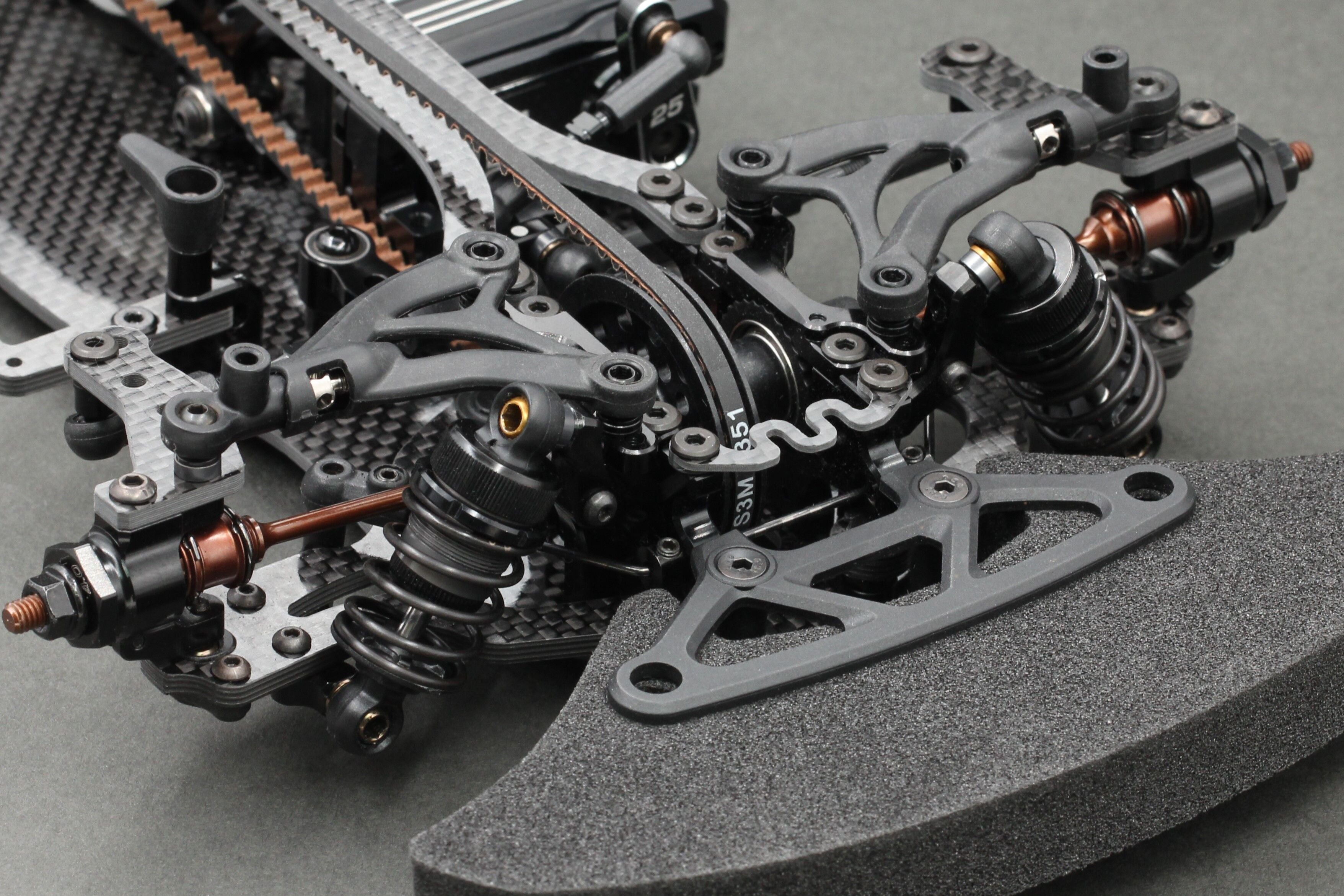

Destiny RX-10SR 3.0 Features:
- Interchangeable lower arm for front, rear, left and right.
- Smooth movement suspension by hard coated 5mm lower arm pivot balls and high quality bushing.
- Graphite lower arm length (track width) adjustable by difference orientation of steering block pivot ball holder, four length was selectable by two different holders.
- Front and rear aluminium lower shock mount.
- Front and rear steering block made by high grade 7075 aluminium and interchangeable.
- Front and rear steering plate swap for two difference steering response setup.
- Large size 6x11x4mm ball bearing used in inner of steering block for more reliable and efficiency.
- Spring steel front double joint drive shaft, and 7075 aluminium rear swing shaft.
- Interchangeable front and rear upper aluminium bulkheads. Front caster 4/5 deg, rear caster 0/1 deg adjustable by different orientation of bulkheads.
- Mounted the pivot balls by screws through a groove and a thread on bulkhead. Upper arm free movement adjustable for active caster setting simply.
- New lower bulkheads install with upper bulkheads with centering insert and make more reliable.
- Laser engraved marking on bulkhead for easy identify differential position.
- Lower position of front and rear anti-roll bar mounting.
- New single piece design motor mount with Multi-Flex Chassis adjustment. Featured adjustable front and rear belt tensioners and battery backstops.
- Shock tower composed by two pieces, easy installation and tweak free alignment.
- Precise shock angle adjustment by shim.
- Shock tower mounted to chassis for more stability and improved the traction.
- 7075 aluminium lightweight hardened wheel hub.
- 7075 aluminium steering centre plate and steering arms with ball bearings.
- 7075 aluminium lightweight floating servo mount.
- Power HD S15X servo is able to mounted directly.
- Swap the graphite battery holders to change the battery forward/backward position.
- Quick release battery backstop and height adjustable to compatible difference size battery
- Battery placement fully fine adjustable.
3.0 Instruction Manual Download
