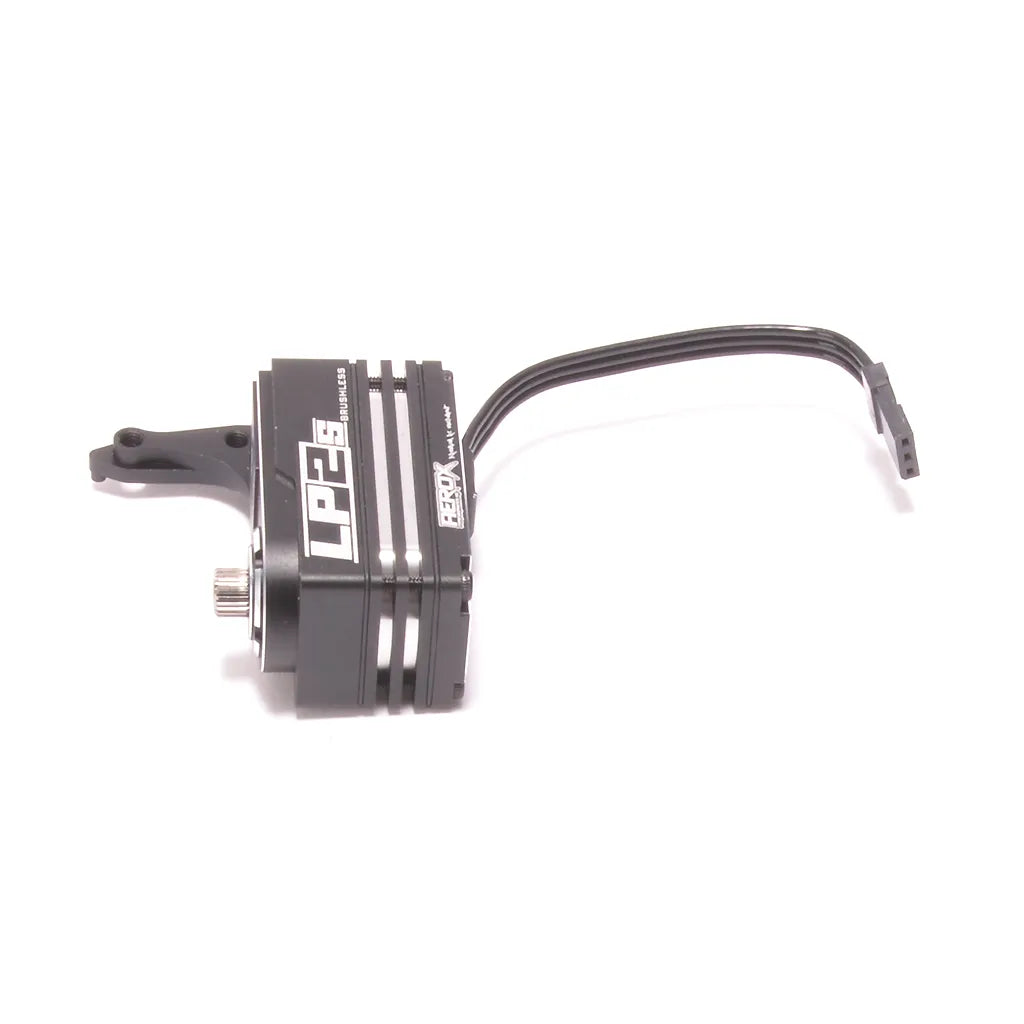

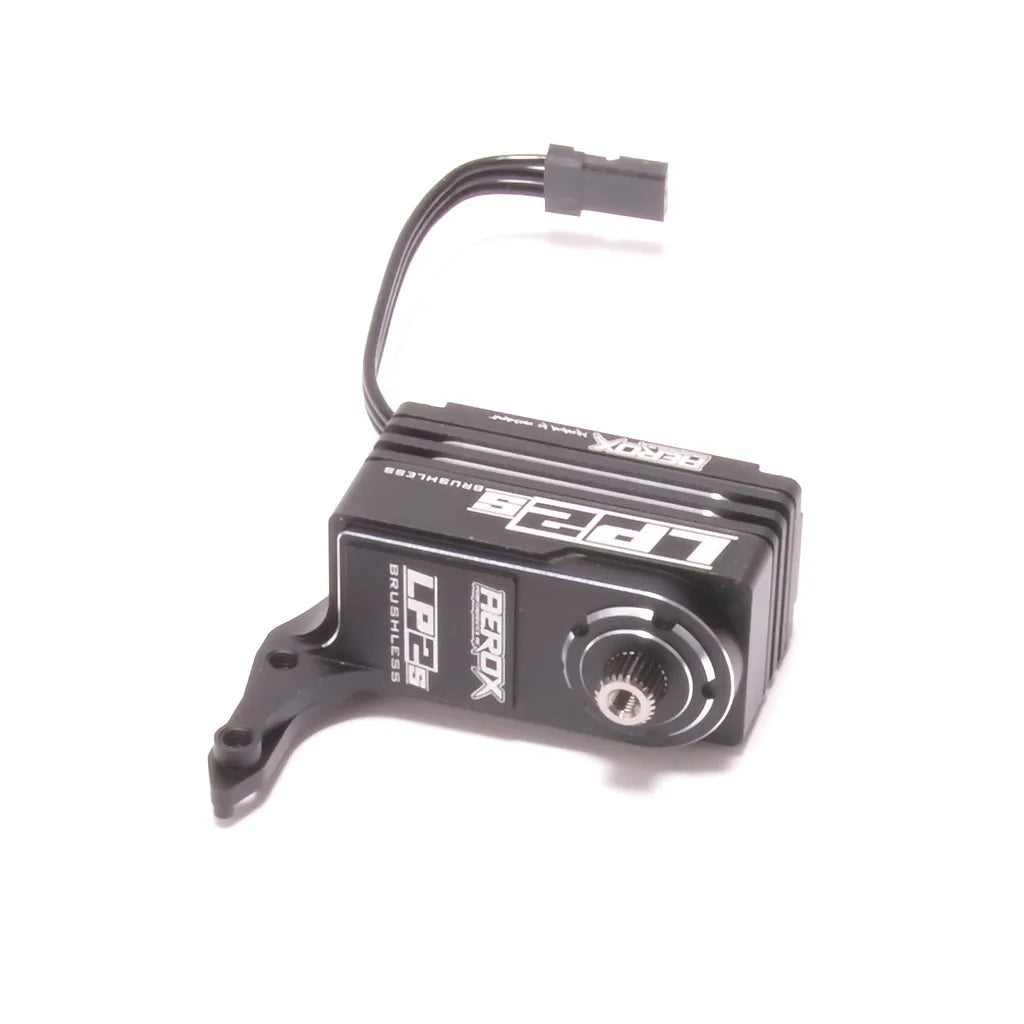

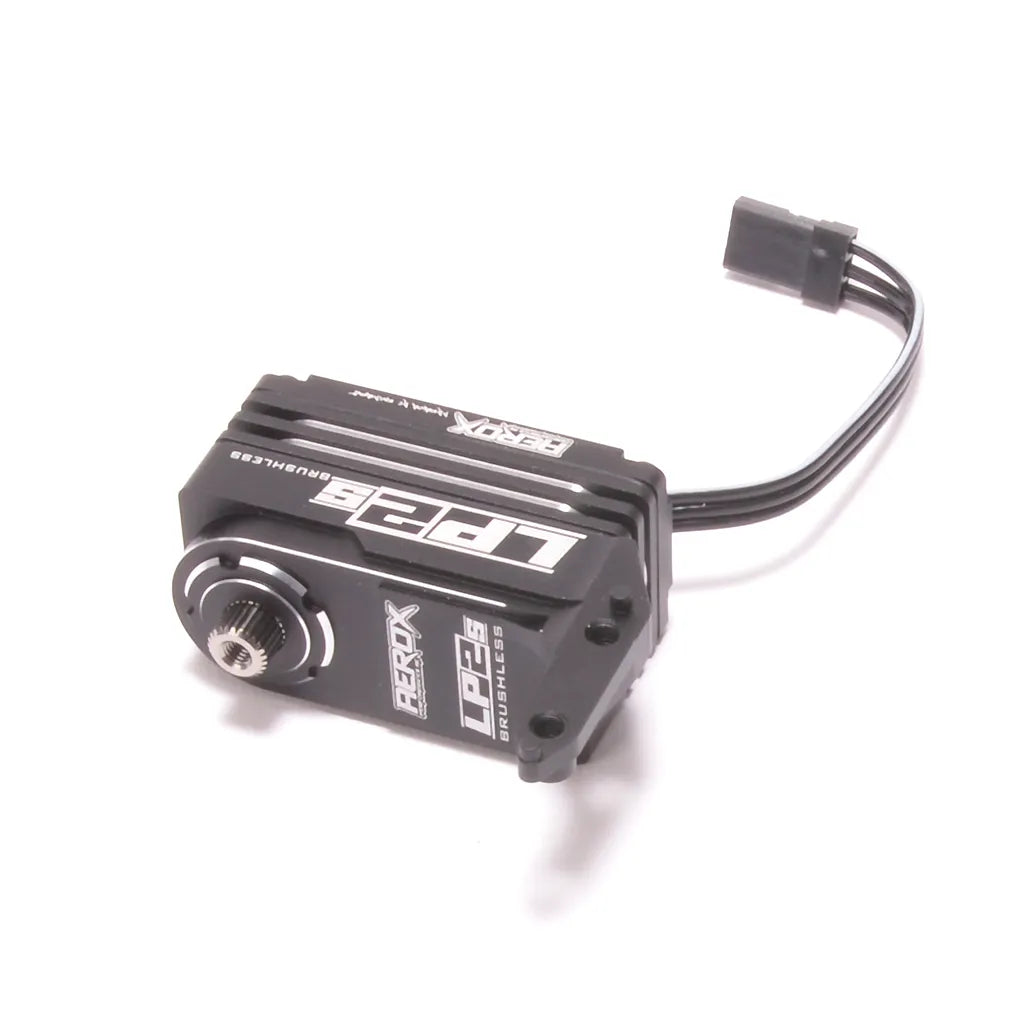

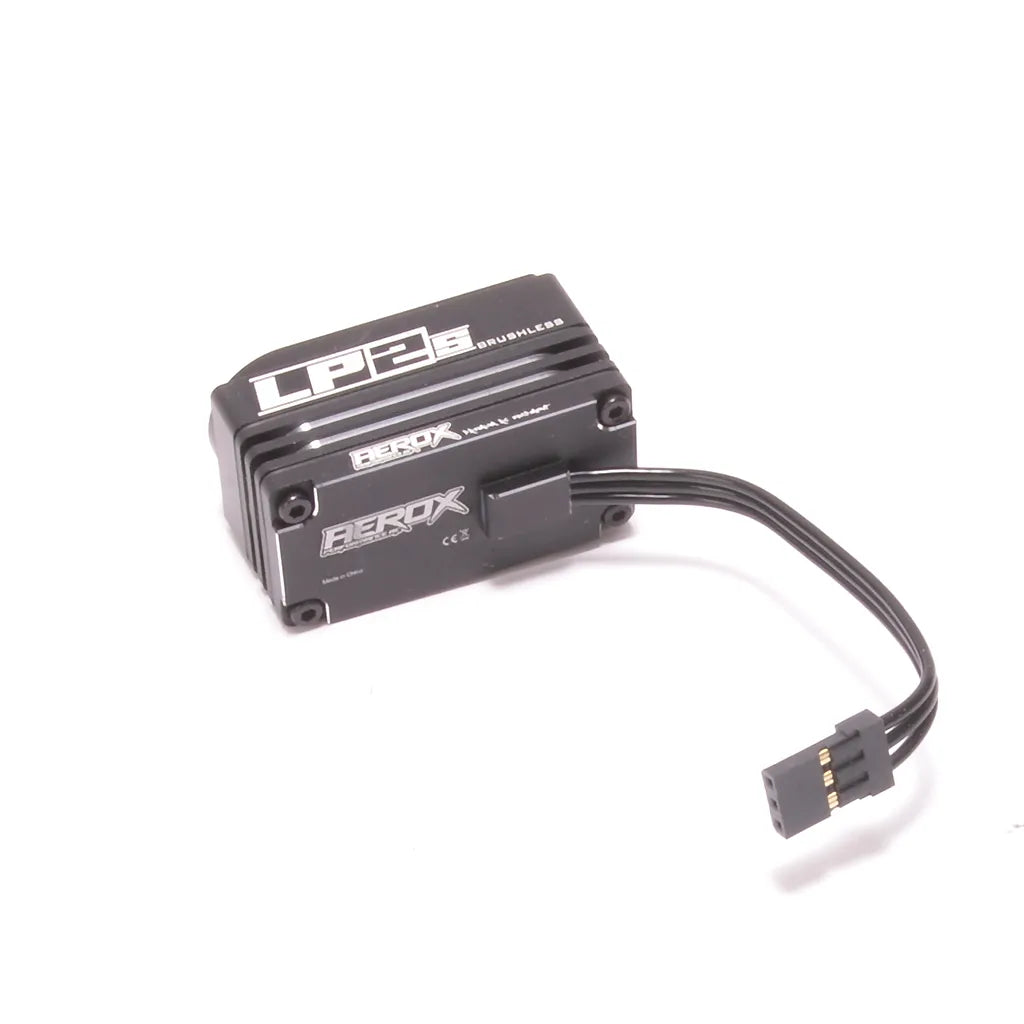

Introducing the AEROX LP2s 1/10th Brushless Servo for the Mi9 and Mi10.
Aerox LP2s is a 1/10th Brushless servo which is direct mount for the Schumacher Mi9 or Mi10.
The LP2s version see's improvement in having a 4 pole Brushless Motor, only 47g and super low profile at 23mm, 3mm shorter than the LP1s. Also includes a Titanium output shaft with 50% hardness and toughness increase. The output wire is now from the bottom of the case, making the receiver placement easier. Now compatible with the high-speed mode of major radios and the i-BUS2 protocol of FlySky Radio, it can remotely setup parameters and sense the temperature data on the FlySky NB4+ Pro Radio.
Direct mounting servo's can give a cleaner look and reduce weight.
This servo is for high level competition, boasting a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torque requirements of modern touring cars.
Torque(6.0V): 15.0 kg-cm (208.3 oz/in)
Torque(7.4V): 18.0 kg-cm (250.0 oz/in)
Torque(8.4V): 23.0 kg-cm (319.4 oz/in)
Speed: 0.080 sec (6.0V)
Speed: 0.073 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 47.0 g (1.66 oz)
Bearing Type: Ball Bearing x 2
Motor Types: 4-pole Brushless Motor
Gear Type: Titanium & 7075
Operating Temperature: -10˚C ~ 60˚C
Working Frequency: 1520µ / 50-1666hz
Size:41.0 x 20.0 x 23.6 mm
Lead Length - 80mm
FT9 version with 180mm servo lead also available. AX105
