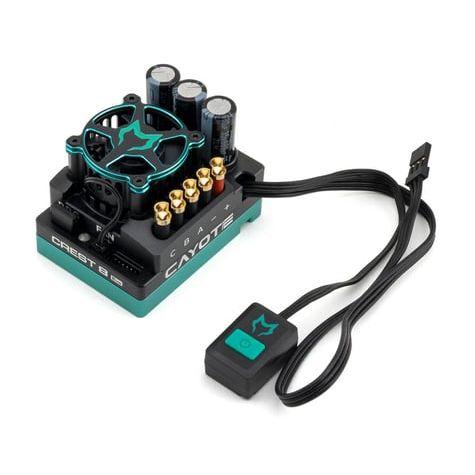

Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/ Bluetooth
Bluetooth ESC Designed for Ultimate Performance
The Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC is designed for serious 1/8-scale racers seeking precise throttle control, reliability, and maximum power. Delivering up to 10% more peak power, the Crest 8 EVO features advanced motor timing, built-in Bluetooth connectivity, and comprehensive protection systems to perform consistently under demanding race conditions. Reverse polarity protection helps prevent installation errors, while an efficient cooling design ensures stable performance throughout long mains and high-load runs.
Powerful Boost & Turbo Timing
With an expanded 48° boost and turbo timing range, the Crest 8 EVO maximizes acceleration and top-end speed while maintaining smooth, predictable power delivery. Fine timing control improves motor efficiency and stability, making it ideal for competitive racing environments.
Bluetooth Tuning & Data Logging
Integrated Bluetooth allows wireless programming and monitoring through the Cayote Team App. The Crest 8 EVO also supports offline data recording, enabling drivers to review performance data and fine-tune their setup. Data can be accessed via the app or the optional Cayote Xlink Multifunction LCD Program Box (CYECPB01, sold separately).
Advanced Protection & Extensive Tuning
Featuring over 37 adjustable parameters, the Crest 8 EVO provides extensive tuning flexibility for different track conditions and driving styles. Multiple protection functions—including low-voltage cutoff and motor over-temperature protection—help safeguard electronics, while built-in reverse polarity protection adds peace of mind during installation.
Features
Built-in Bluetooth compatibility with the Cayote Team App
Up to 10% more peak power
Offline data logging
Reverse polarity protection
32-bit ARM Cortex-M4 processor
Up to 108MHz clock speed
Adjustable drag brake (1–20 levels)
Multiple electronic protection functions
Optional RPM limiting (10,000–88,000 RPM)
Selectable throttle midpoint: 4%, 6%, 8%, or 10%
Specifications
Application: 1/8 Buggy, Truggy & Truck
Motor Type: Brushless (Sensored / Sensorless)
Input Voltage: 2–4S LiPo (7.4–14.8V)
Continuous Current: 200A
Peak Current: 1080A
Dimensions (L×W×H): 2.24 × 1.64 × 1.57 in (56.8 × 41.6 × 40mm)
Weight: 4.3 oz (122g)
Motor Limit: 4268 / 4274 up to 3000kV on 4S LiPo
BEC Voltage: 6.0V / 7.4V selectable
BEC Current: 8A continuous / 12A peak
Motor Connector: Solder
Battery Connector: Solder
Motor Wire: 10AWG
Battery Wire: 13AWG
Programmable: Yes, via Cayote Team App or Xlink Program Box
