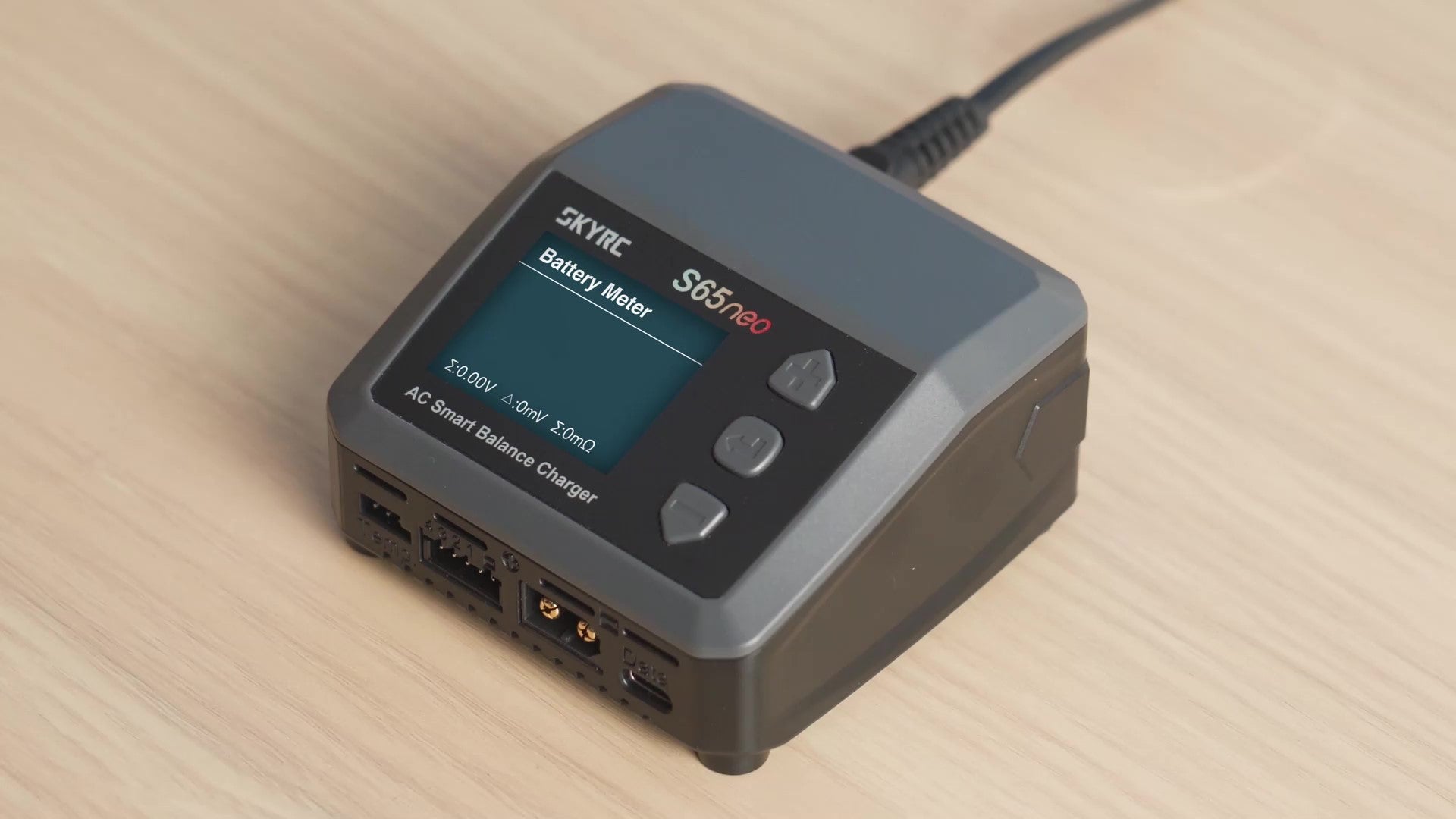

SkyRC S65neo 65W AC Smart Balance Charger
The SkyRC S65neo is a compact AC smart balance charger designed to provide versatile battery charging, discharging and power supply functions in a palm-sized package.
With up to 65W of charging power and a maximum 10A charging current, the S65neo supports a wide range of battery chemistries including LiPo, LiHV, Li-ion, LiFe, NiMH, NiCd and Pb batteries.
Compact and Powerful
Measuring just 84 x 84 x 45.3mm and weighing 200g, the S65neo provides a compact charging solution for the workbench, pit area or wherever portable charging is required.
Multiple Battery Chemistries
- LiPo: 2-4S
- LiHV: 2-4S
- Li-ion: 2-4S
- LiFe: 2-4S
- NiMH: 6-8 cells
- NiCd: 6-8 cells
- Pb: 3S / 6S
Charging and Discharging
The S65neo provides a range of charging and battery maintenance functions depending on the battery chemistry.
- Maximum charging power: 65W
- Charging current: 0.1A-10A
- Discharge current: 0.1A-2A
- Discharge power: 10W
- Balance current: up to 500mA
Operating Modes
LiHV / LiPo / Li-ion / LiFe
- Balance Charge
- Charge
- Storage
- Discharge
NiMH / NiCd
- Charge
- Re-Peak
- Cycle Charge > Discharge
- Cycle Discharge > Charge
- Discharge
Pb
- Normal Charge
- AGM Charge
- Cold Charge
- Discharge
Adjustable DC Power Supply
The S65neo can also be used as an adjustable DC power supply, providing an output voltage range of 6V-17V and an adjustable current range of 0.5A-9A, with up to 65W of power.
Battery Analysis
The built-in battery measurement functions allow the S65neo to measure battery voltage and internal resistance, providing additional information when checking battery condition and performance.

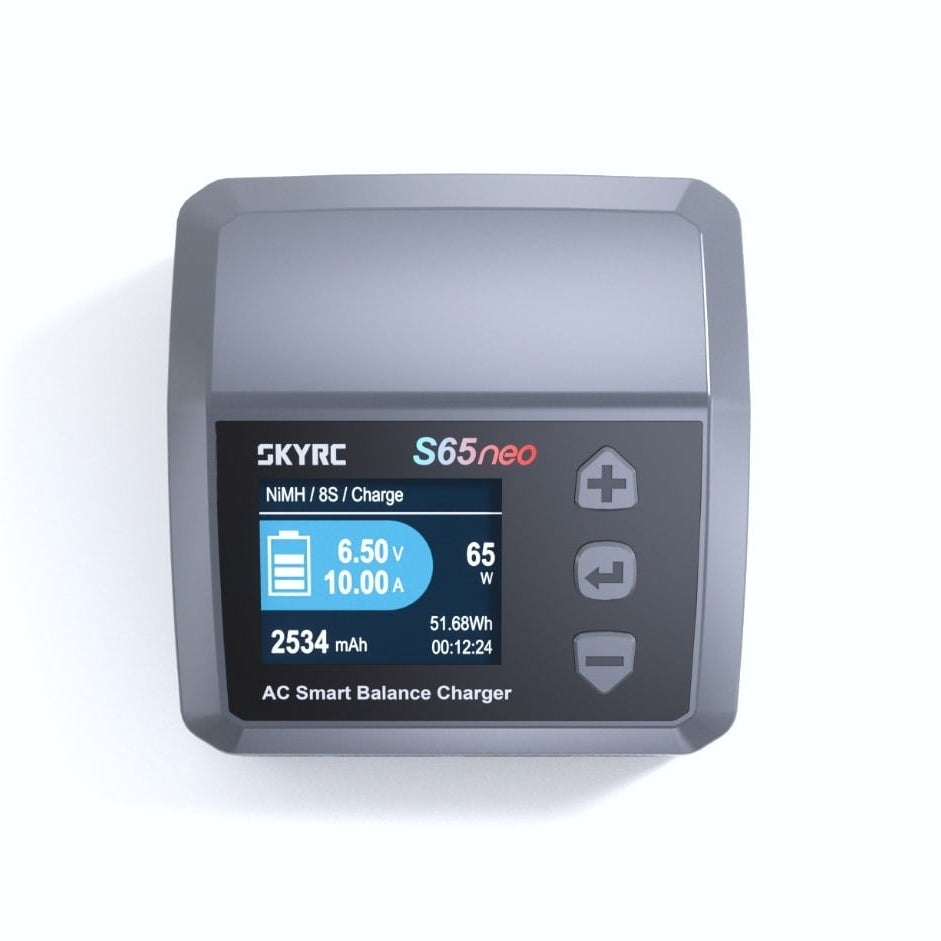

ColorX Interface
The S65neo features SkyRC's ColorX interface with a responsive menu system and intuitive icons. The interface supports multiple languages, allowing users to select their preferred display language.
Supported languages include English, Chinese, Japanese, German, French and Spanish.
Smart Cooling
An integrated temperature sensor adjusts the cooling fan according to the load and operating temperature, providing active cooling during higher-power operation while reducing fan activity under lighter loads.
Safety Protection
The S65neo incorporates multiple protection functions designed to help protect the charger and connected batteries during operation.
- Short-circuit protection
- Over-temperature protection
- Capacity protection
- Time-out protection
- Over-current protection
- Reverse-polarity protection
- Flame-retardant chassis
Specifications
| Model | SK-100237 |
| Input Voltage | AC 100-240V, 50/60Hz |
| Charging Power | 65W |
| Charging Current | 0.1A-10A |
| Discharge Current | 0.1A-2A |
| Discharge Power | 10W |
| Balance Current | Maximum 500mA |
| DC Power Output | 6V-17V, 0.5A-9A |
| Dimensions | 84 x 84 x 45.3mm |
| Weight | 200g |
| Operating Temperature | 0°C-40°C |
| Operating Humidity | 5%-75% RH |
| Storage Temperature | -10°C-70°C |
| Storage Humidity | 5%-75% RH |
