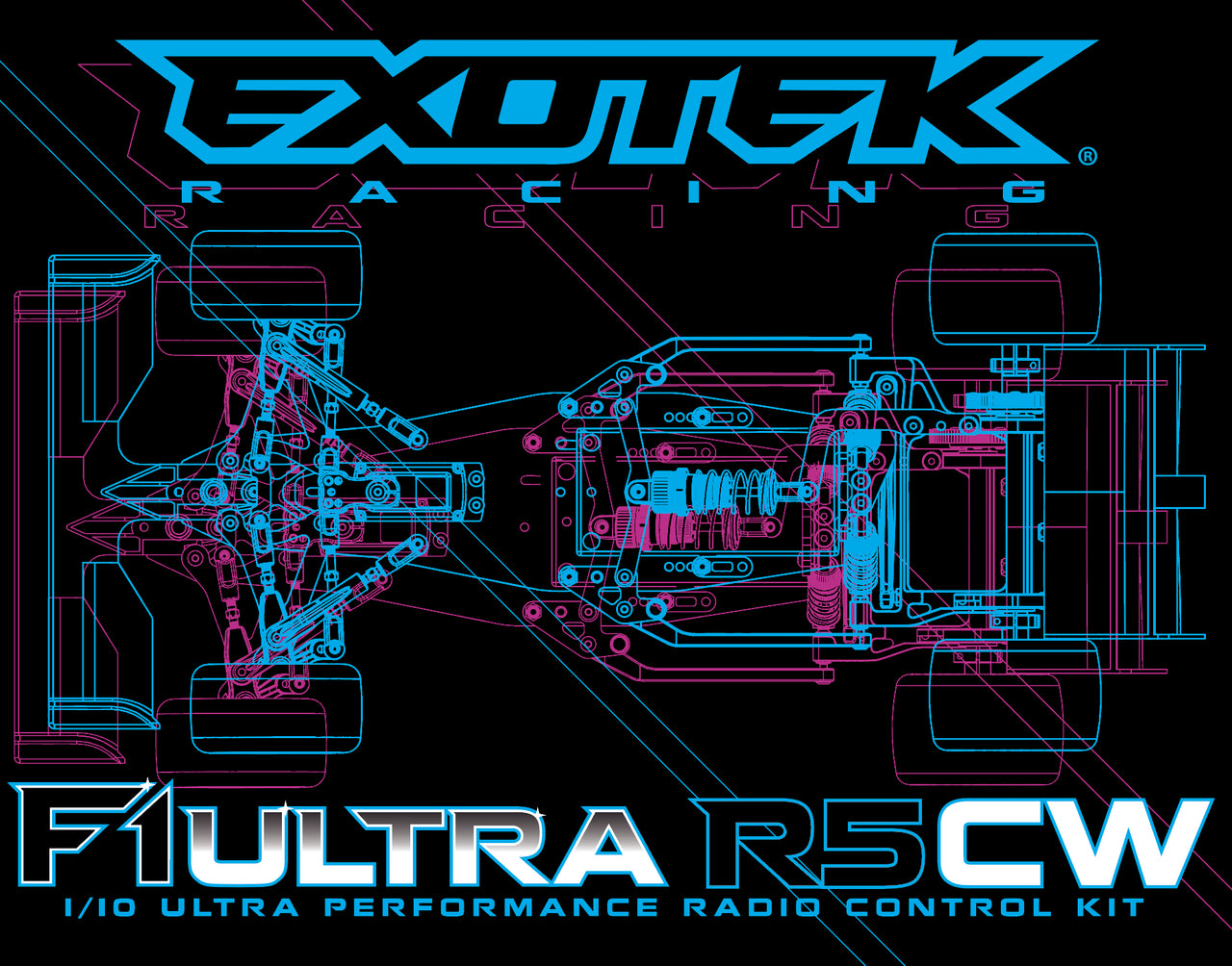

Lighter, leaner and meaner. The F1ULTRA R5 CW is a cutting edge high-performance F1 racing kit that evolves all of the great features of original F1Ultra into a perfected race machine designed specifically for carpet tracks.
Some of the details;
• Inline battery mounting layout, best suited for very high grip tracks with the option to still mount the battery transversely if needed.
• Optimized F1 design for maximum rubber tire performance.
• Extra narrow 72mm chassis for less chassis scrub through corners.
• Adjustable forward and back servo positioning for easy ackerman/ steering geometry adjustments.
• Patented floating pod rear suspension system for superior rubber tire traction.
• NO center rear pod ball pivot means much improved chassis roll for unmatched corner speeds.
• Adjustable camber and caster via turnbuckles for easy and exact set up with no clumsy inserts.
• 3 oil filled shocks with all machined bodies and internals for velvety smooth operation and proper sealing.
• 1 piece heavy duty machined alloy front bulkhead provides rock solid tweak free front suspension mounting.
• 1 Piece 7075 alloy rear pod plate for a tweak free heavy duty design, adds rear traction and improves motor cooling.
• Lightweight spool axle set with 1/4” carbon fiber axle and extra heavy duty oversized 1/2" axle bearings.
• Simplified direct steering to servo design for reduced play, reduced parts count and precise steering feel.
• Easy front roll center changes via shims on the inner camber mounts.
• Integrated 30mm fan mount on the left pod.
• New 3.0mm 1 piece extra rigid yet light weight carbon chassis.
• New heavy duty 1 piece extra long side links provides reduced rear bump steer typical of shorter side links.
• New motor mount with upper and lower motor attachment for less motor flexing.
• New easy grip/ easy removal custom e-clips on the front suspension pins.
• New 1 piece front suspension pins for less play.
• New direct ALLOY servo horn and alloy servo mounts.
• New wider and lighter rear pod for extra motor sensor wire clearance.
• New shorter alloy caster posts.
• New high tolerance front axle.
• New double bolt front wing mount.
• New pinned nylon side link mounts.
• New high downforce rear wing set with heavier duty front wing.
REQUIRED TO COMPLETE (not included)
- 1:10 Scale Electric Motor
- SMALL SIZED Electronic Speed Controls (TEKIN RS SPEC ESC fits and works very well)
- LOW PROFILE TC type steering Servo (no off road servos)
- “Shorty” Battery Pack or LCG Shorty Pack.
- Battery Charger
- 2-Channel Surface Radio System
- 1:10 Scale F1 Wheels and Rubber (or Foam) Tires
- 1:10 Scale Polycarbonate F1 Body
- Polycarbonate-Specific Spray Paint for Body
- Servo Tape (3M brand is best)
- Kit building tools
F1 ULTRA R5CW BLANK SET UP SHEET
PATENTED REAR SUSPENSION 11318394
