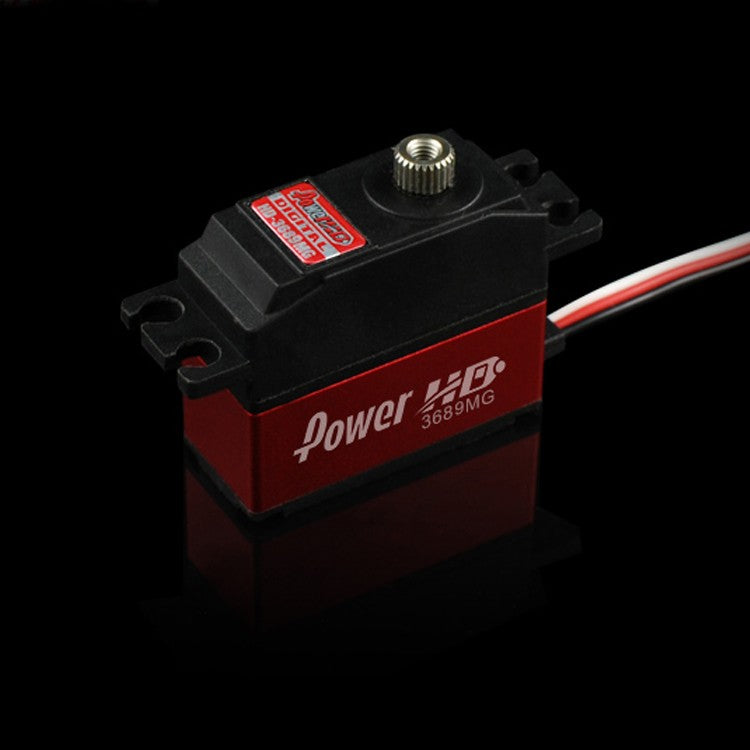

POWER HD-3689MG 6.0V 4.8KG Digital Metal Gear Servos SKU:HD-3689MG
Product Description
POWER HD-3689MG 6.0V 4.8KG Digital Metal Gear Servo
For 500 RC Helicopter,similarly DS510/510M
Specifications:
- Torque(4.8V): 4.2 kg-cm (58.33 oz/in)
- Torque(6.0V): 4.8 kg-cm (66.66 oz/in)
- Speed: 0.10 sec (4.8V) │ 0.09 sec (6.0V)
- Operating Voltage：4.8 ~ 6.0 DC Volts
- Weight: 29 g (1.02 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type：Coreless Motor
- Gear Type：Copper & Aluminum
- Operating Temperature：-20℃~60℃
- Working frequence：1520μs / 333hz
- Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
